Helios 3" Trimless

New Product

HL3-T

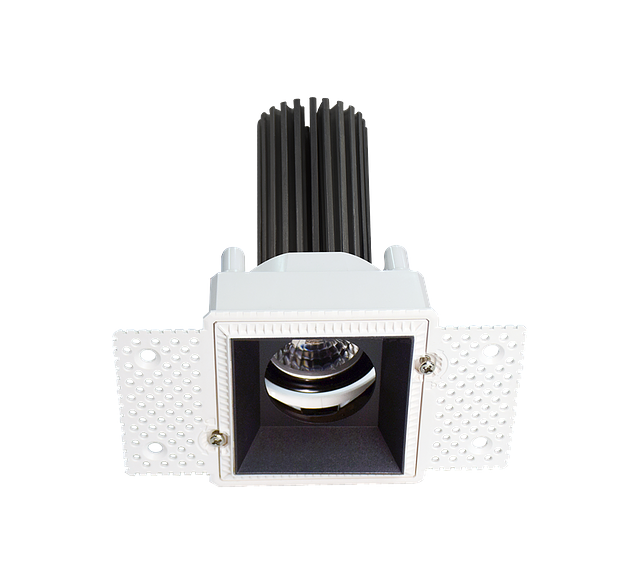

The Helios 3" Trimless downlight offers high-performance, small aperture lighting with superior optics, multiple trim finishes, and a decorative kit option. The base light engine offers selectable wattage (5~19W) with 90CRI maintained across 2700K~4000K. A dim-to-warm option is available, providing 90CRI over a 3000K~2000K range. An adjustable lens holder offers 30° vertical tilt and 360° horizontal adjustment.
Specification Sheet

Resources

CCT

  • Field Selectable CCT
  • 2700K
  • 3000K
  • 3500K
  • 4000K

CRI

  • 90 CRI
  • 95 CRI

Dimming Protocol

  • 0-10 V
  • Triac (Leading Edge)

Dimming Range

  • 1%

Dynamic LED Color

  • Dim to Warm

Efficacy

  • 93 lm/w

Installation Type

  • New Construction
  • Retrofit & Remodel

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 744 Lm
  • 930 Lm
  • 1209 Lm
  • 1488 Lm
  • 1767 Lm

Ratings & Compliance

  • Damp
  • Wet

Shape

  • Round
  • Square

Special Programs

  • Quick Ship

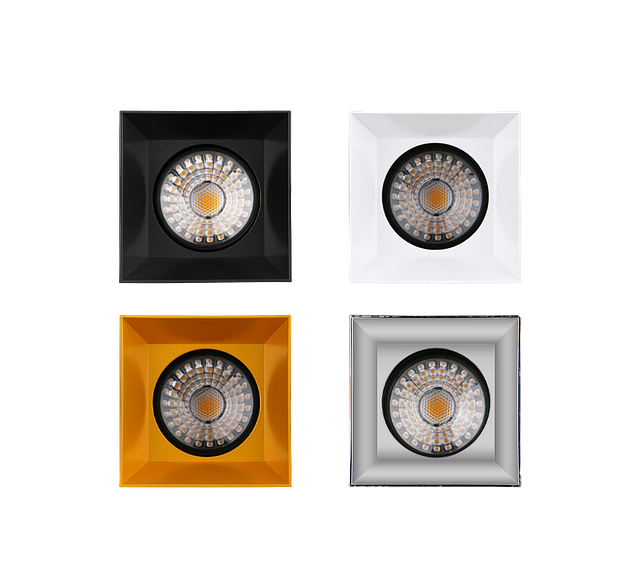

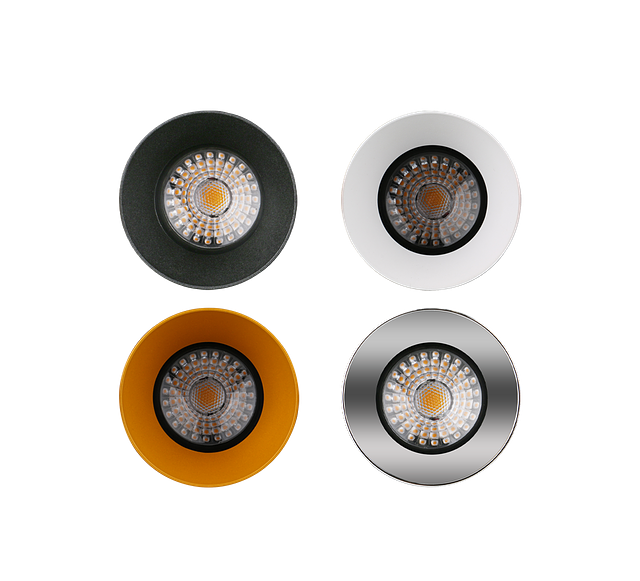

Trim Finish

  • Black
  • Gold
  • Silver
  • White

Trim Type

  • Lensed
  • Pinhole
  • Wall Wash

Voltage

  • 120-277 V

Watts

  • 8 w
  • 10 w
  • 13 w
  • 16 w
  • 19 w
