Frame

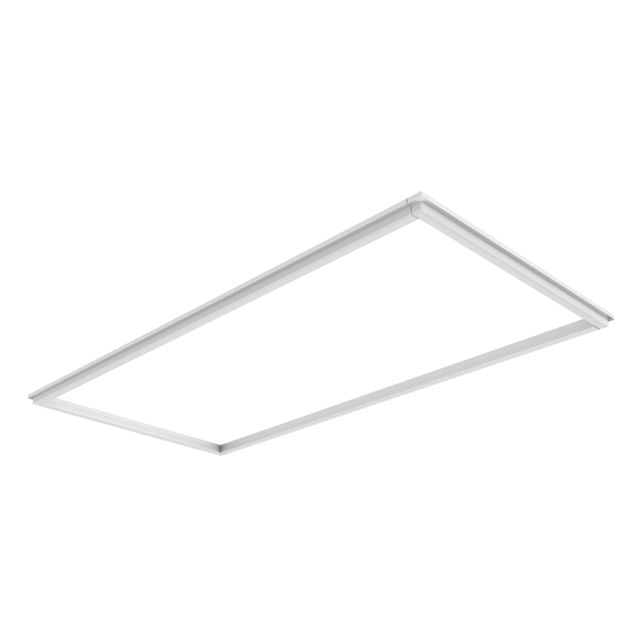

Architectural T-Grid Luminaire

The GF is a luminaire that transforms grid ceilings with a modern design, available in 1x4, 2x2, and 2x4 sizes. It features field-selectable lumen output and CCT, with a remote driver and 0-10V dimming. Made from aluminum with a frosted lens, it is IC rated, DLC listed, and cETLus for damp locations.
Specification Sheet

Resources

Specsheets


CCT

  • Field Selectable CCT
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6500K

CRI

  • 80 CRI

Color / Finish

  • White

Dimensions

  • H: 0.59 In. L: 47.75 In. W: 11.93 In.
  • H: .59 In. L: 23.74 In. W: 23.74 In.

Dimming Protocol

  • 0-10 V

Lamp Life

  • 50000 hrs

Lumens

  • 2500 Lm
  • 5000 Lm
  • 7500 Lm

Ratings & Compliance

  • Assembled in America
  • Buy American Act (BAA)
  • DLC
  • Damp
  • IC

Shape

  • Rectangular
  • Square

Voltage

  • 120-277 V

Watts

  • 20 w
  • 30 w
  • 40 w
  • 50 w
  • 60 w
