Helios G2 2" Trimless

New Product

HL2-G2-T

The Helios Generation 2 Series Trimless recessed downlight offers high-performance,  small aperture lighting with superior optics and a decorative kit option. Base light engine offers selectable wattage (5~19W) with 90CRI maintained across 2700K~4000K. A dim-to-warm option is available, providing 90CRI over a 3000K~2000K range. An adjustable lens holder offers 30° vertical tilt and 360° horizontal adjustment.
Specification Sheet

Resources

CCT

  • Field Selectable CCT
  • 2700K
  • 3000K
  • 3500K
  • 4000K

CRI

  • 90 CRI
  • 95 CRI

Color / Finish

  • Black
  • White

Dimming Protocol

  • 0-10 V
  • Triac (Leading Edge)

Dimming Range

  • 1%

Distribution

  • Direct

Dynamic LED Color

  • Dim to Warm

Efficacy

  • 67 lm/w

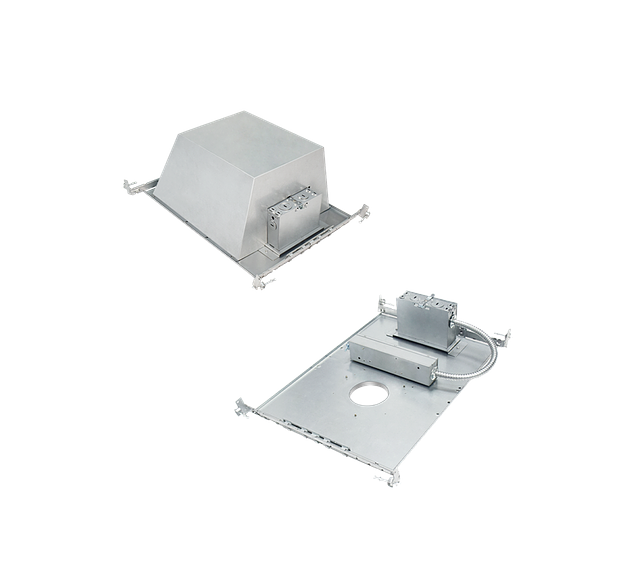

Installation Type

  • New Construction
  • Retrofit & Remodel

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 536 Lm
  • 670 Lm
  • 871 Lm
  • 1072 Lm
  • 1273 Lm

Ratings & Compliance

  • Damp
  • Wet

Shape

  • Round

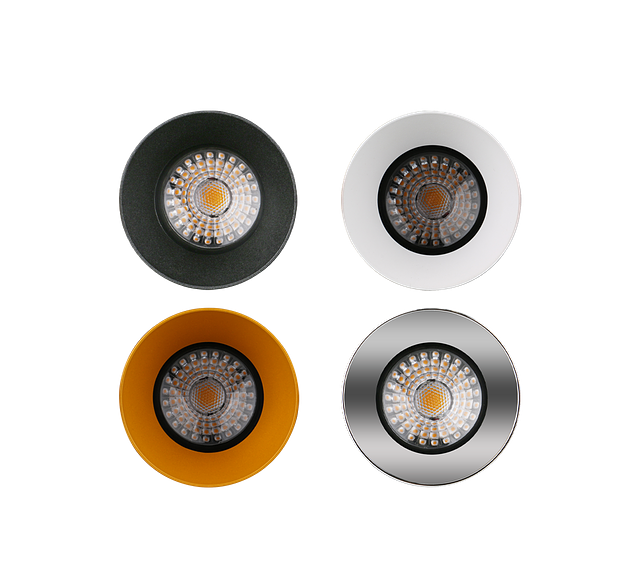

Trim Finish

  • Black
  • Gold
  • Silver
  • White

Trim Type

  • Trimless

Voltage

  • 120-277 V

Watts

  • 8 w
  • 10 w
  • 13 w
  • 16 w
  • 19 w
