Helios G2 2"
New Product
HL2-G2

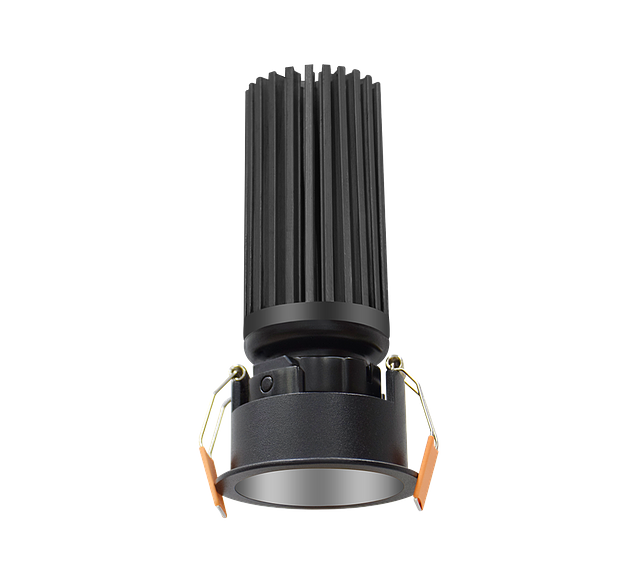

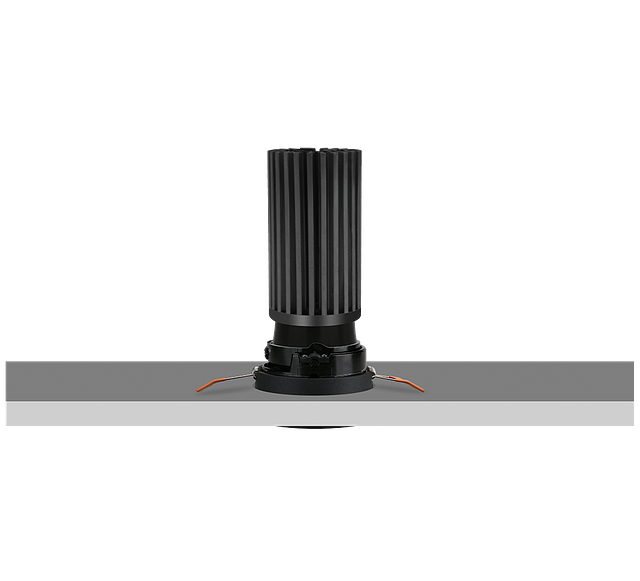

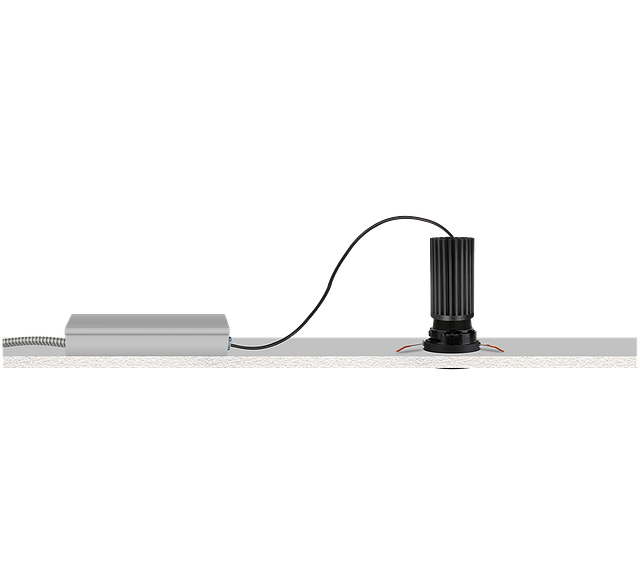

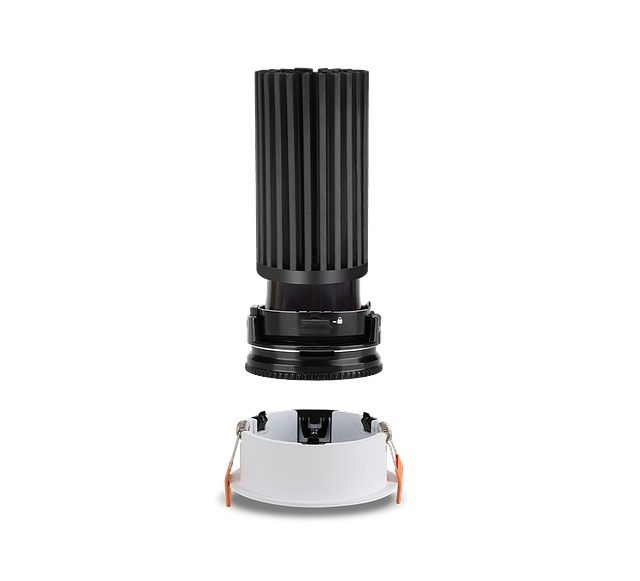

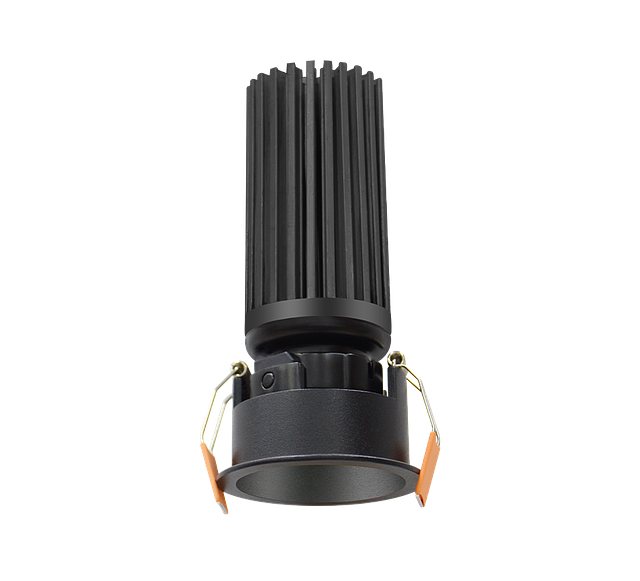

The Helios Generation 2 Series recessed downlight offers high-performance, small aperture lighting with superior optics and a decorative kit option. Base light engine offers selectable wattage (5~19W) with 90CRI maintained across 2700K~4000K. A dim-to-warm option is available, providing 90CRI over a 3000K~2000K range. An adjustable lens holder offers 30° vertical tilt and 360° horizontal adjustment.
Resources
CCT
- Field Selectable CCT
- 2000K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 90 CRI
- 95 CRI
Color / Finish
- Black
- White
Dimming Protocol
- 0-10 V
- Triac (Leading Edge)
Dimming Range
- 1%
Distribution
- Direct
Dynamic LED Color
- Dim to Warm
Efficacy
- 67 lm/w
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Source
- LED
Listings
- cULus
Lumens
- Lm
- 536 Lm
- 670 Lm
- 871 Lm
- 1072 Lm
- 1273 Lm
Ratings & Compliance
- Damp
- Wet
Shape
- Round
Special Programs
- Quick Ship
Trim Finish
- Black
- Gold
- Silver
- White
Voltage
- 120-277 V
Watts
- 8 w
- 10 w
- 13 w
- 16 w
- 19 w
