Lumina
LMA 1K.2.png
LMA 1K.3.pngLumina
New Product

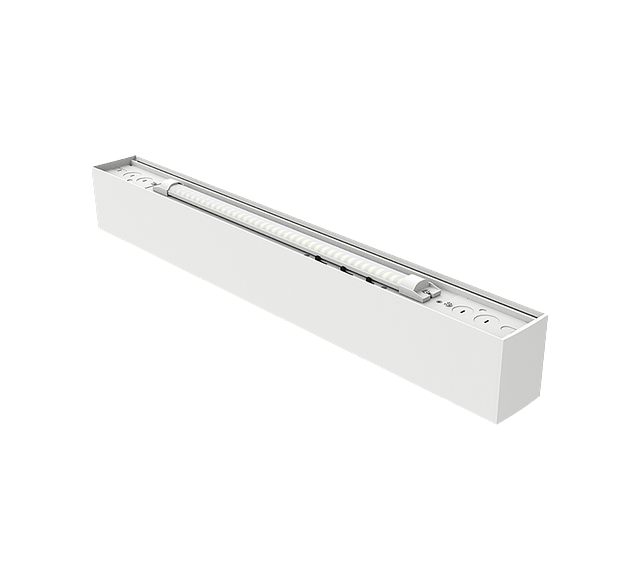

Lumina Series Architectural Linear Luminaire
Lumina is an architectural linear fixture with a 2.5” aluminum extruded housing, available in 2, 4, 6 and 8-FT lengths with black or white finishes, and optional continuous runs up to 40 ft. It features field-selectable CCT (2700K~5000K), >80 CRI standard (>90 CRI optional), field-selectable distributions, integral 120–277V driver with 0–10V dimming, cULus damp-location listing, and an LED lifespan over 100,000 hours.
Resources
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
- 90 CRI
Color / Finish
- Black
- White
Dimming Protocol
- 0-10 V
Dimming Range
- 0-100%
Distribution
- Direct
- Indirect/Direct
Efficacy
- 125 lm/w
- 130 lm/w
- 135 lm/w
Lamp Source
- LED
Listings
- cULus
Lumens
- Lm
- 1250 Lm
- 1875 Lm
- 2500 Lm
- 3750 Lm
- 3900 Lm
- 5000 Lm
- 7500 Lm
- 10000 Lm
- 10400 Lm
Mounting
- Recessed
- Suspended
- T-Grid
- Wall
Ratings & Compliance
- Buy American Act (BAA)
Up/Down Ratio
- 0/100 (Up/Down)
- 100/0 (Up/Down)
- 30/70 (Up/Down)
- 50/50 (Up/Down)
- 70/30 (Up/Down)
Voltage
- 120-277 V
Watts
- 10 w
- 15 w
- 20 w
- 30 w
- 40 w
- 60 w
- 80 w
Max Run Distance
- 40 Ft.
