Lumina

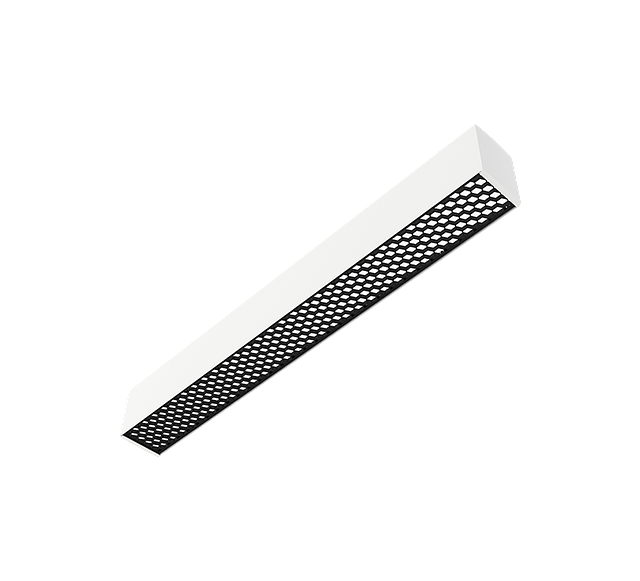

Lumina Series Louvered Architectural Linear Luminaire
Lumina is an architectural linear louver fixture with a 2.5” aluminum extruded housing, available in 2, 4, 6 and 8-FT lengths with black or white finishes, and optional continuous runs up to 40 ft. It features field-selectable CCT (2700K~5000K), >80 CRI standard (>90 CRI optional), field-selectable distributions, integral 120–277V driver with 0–10V dimming, cULus damp-location listing, and an LED lifespan over 100,000 hours.
Resources
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80
- 90
Color / Finish
- Black
- White
Dimming Protocol
- 0-10 V
Dimming Range
- 0-100%
Distribution
- Direct
- Indirect/Direct
Efficacy
- 125
- 130
- 135
Lamp Source
- LED
Listings
- cULus
Lumens
- 1250
- 1875
- 2500
- 3750
- 3900
- 5000
- 7500
- 10000
- 10400
Mounting
- Recessed
- Suspended
- T-Grid
- Wall
Ratings & Compliance
- Buy American Act (BAA)
Up/Down Ratio
- 0/100
- 100/0
- 30/70
- 50/50
- 70/30
Voltage
- 120-277 V
Watts
- 10
- 15
- 20
- 30
- 40
- 60
- 80
Max Run Distance
- 40
