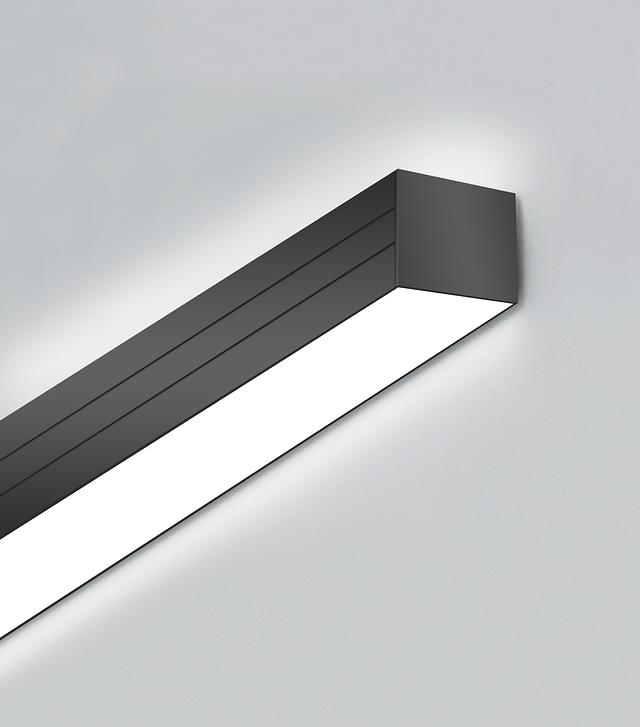

LUX 3.8 WALL

Architectural Linear Luminaire

The LX3.8 wall mount features a 3.8” aluminum profile in White or Black, available in various lengths. It offers soft, even direct and direct/indirect illumination through a frosted polycarbonate lens, with field-selectable CCT options. cULus listed for damp locations, with a dimmable power supply and long-lasting LED performance.
Specification Sheet

Resources

CCT

  • Field Selectable CCT
  • 3000K
  • 3500K
  • 4000K

CRI

  • 80 CRI

Color / Finish

  • Black
  • White

Dimensions

  • L: 47.72 In.
  • L: 95.24 In.
  • L: 35.71 In.
  • H: 3.74 In. L: 23.7 In. W: 3.74 In.

Dimming Protocol

  • 0-10 V

Distribution

  • Direct/Indirect

Lamp Life

  • 50000 hrs

Mounting

  • Wall

Ratings & Compliance

  • Assembled in America
  • Damp

Shape

  • Linear

Voltage

  • 120-277 V

Watts

  • 10 w
  • 15 w
  • 20 w
  • 23 w
  • 30 w
  • 40 w
  • 60 w
  • 80 w
