Edgeline 4"
EGL 4 1K.1.png
EGL 4 1K.3.png
EGL 4 1K.2.pngEdgeline 4"
EGL Series Architectural Linear Luminaire

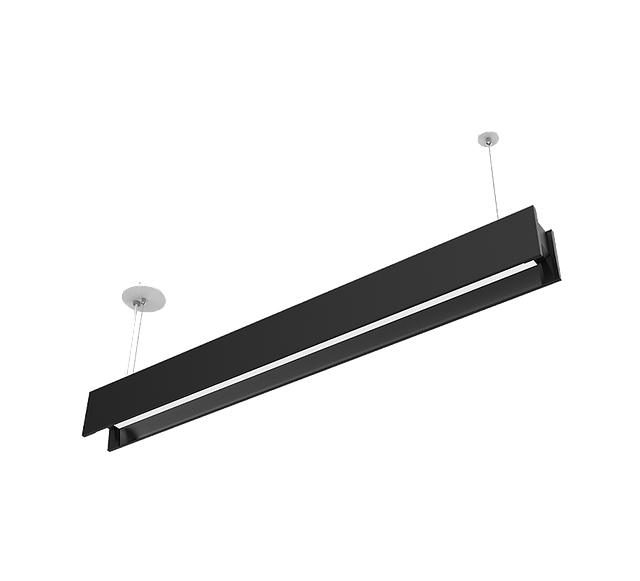

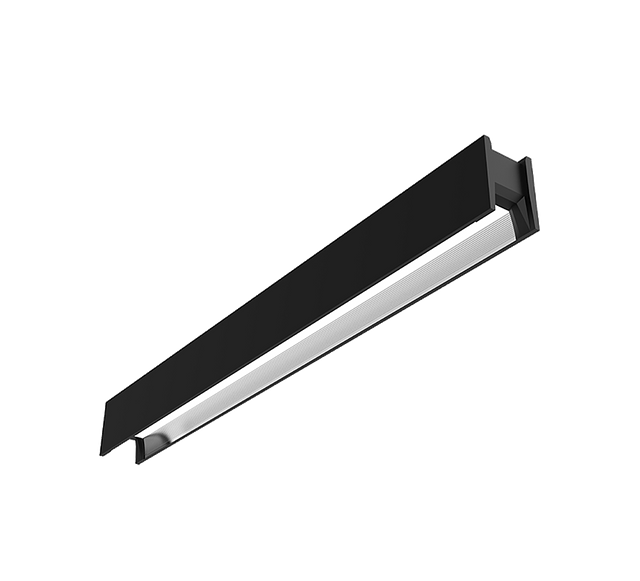

Edgeline series architectural linear luminaire with a 4" wide aluminum extruded profile, available in 2, 4, and 8 feet options. Aircraft steel cable suspension system for direct ceiling mounting, with power supply unit integral inside fixture, and power feed cable through junction box cover plate; frosted polycarbonate lens; emits even soft direct, direct/indirect facing light for general illumination; >90CRI LED and field-selectable CCT in 2700K /3000K / 3500K / 4000K / 5000K.
Resources
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 90
Color / Finish
- Black
- White
Controls Options
- Bi-level Dimming
- Motion Sensor
Dimming Protocol
- 0-10 V
Dimming Range
- 0-100%
Distribution
- Direct
- Indirect
- Indirect/Direct
Efficacy
- 125
Emergency Options
- Emergency Battery Backup
Lamp Source
- LED
Listings
- cULus
Lumens
- 1250
- 1875
- 2500
- 3750
- 5000
- 7500
- 10000
Mounting
- Suspended
- Wall
Ratings & Compliance
- Buy American Act (BAA)
- Damp
Shape
- Linear
Up/Down Ratio
- 30/70
- 50/50
- 70/30
Voltage
- 120-277 V
Watts
- 10
- 15
- 20
- 30
- 40
- 60
- 80
