HL PNG.pngHelios 4"

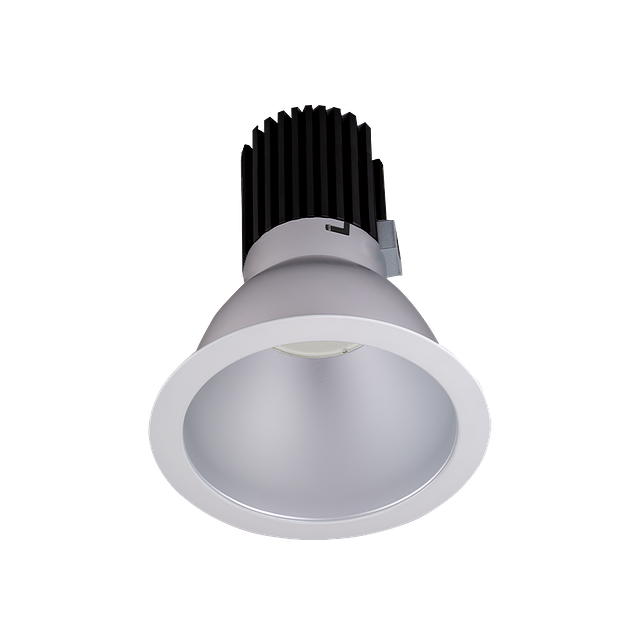

4" Performance Downlight

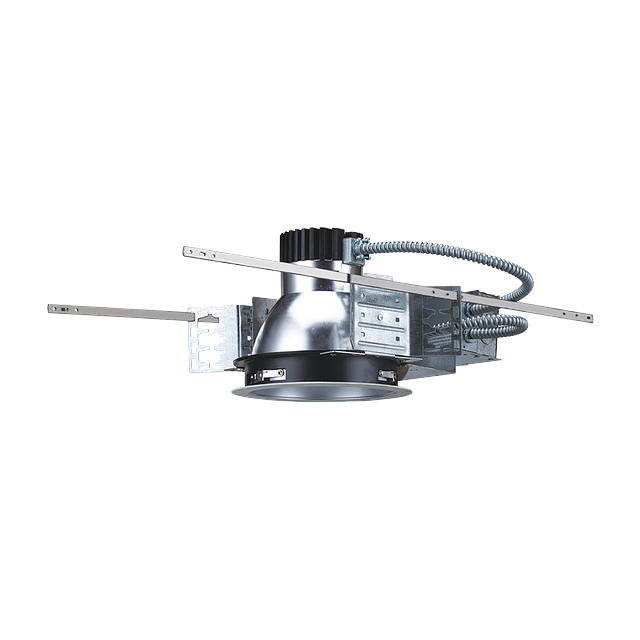

The HL is a 4" Performance Downlight that offers field-selectable CCT and lumen options for customizable, flicker-free illumination. Available in multiple trim sizes for retrofit or new construction, it features an aluminum heatsink and trim, with high color rendering and long-lasting performance. cULus listed for damp locations, with a dimmable power supply and various CCT choices.
Resources
Aperture
- 4 In.
CCT
- Field Selectable CCT
- 3000K
- 3500K
- 4000K
CRI
- 90 CRI
Color / Finish
- Smooth White
Dimensions
- H: 3.94 In.
- H: 1.57 In. W: 3.29 In.
Dimming Protocol
- 0-10 V
Lamp Life
- 50000 hrs
Lumens
- 1730 Lm
- 2398 Lm
- 3444 Lm
Ratings & Compliance
- Damp
Shape
- Round
Voltage
- 120-277 V
Watts
- 18 w
- 27 w
- 40 w
