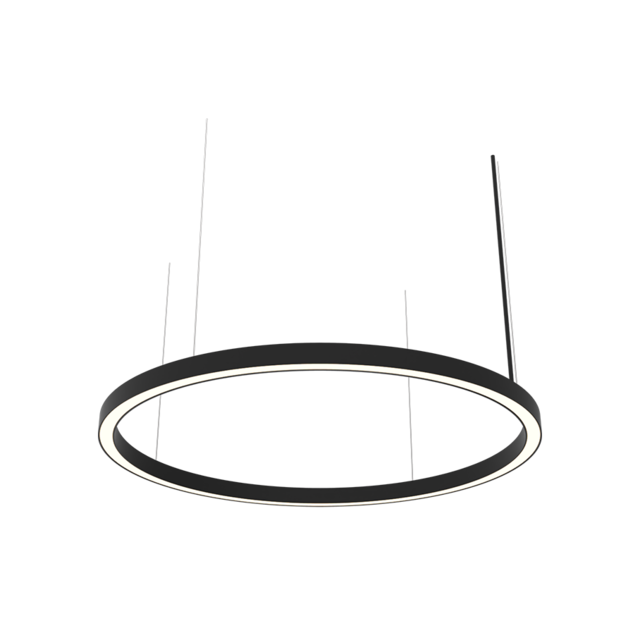

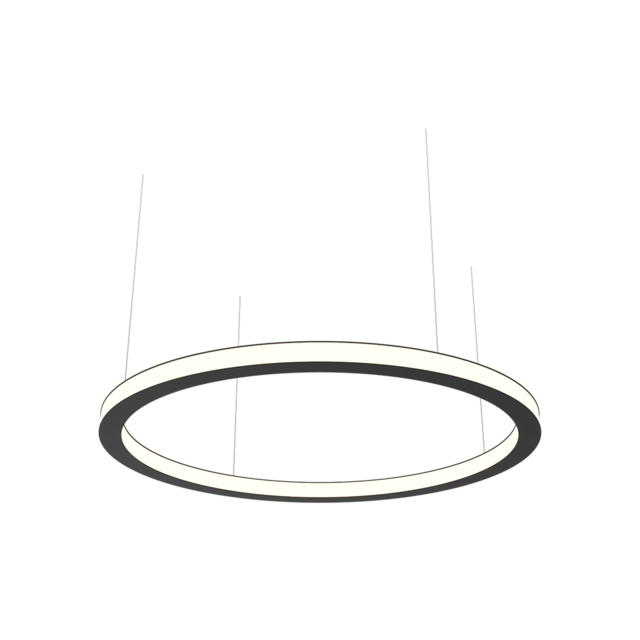

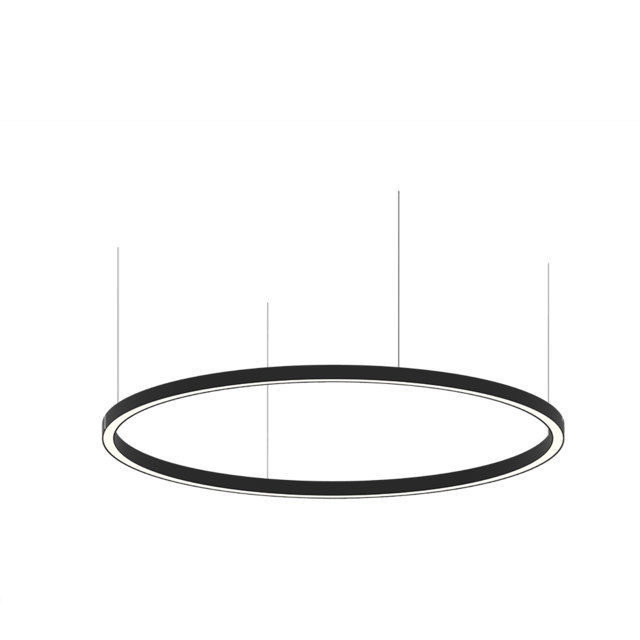

Revolve 87

New Product

3" Width Profile Direct

Revolve Series 87 - Make a bold statement with 3” width Revolve, a striking blend of modern design and powerful performance. Its sleek circular form and wide luminous band create an unforgettable focal point, flooding spaces with smooth, glare-free light that feels both dramatic and inviting. Perfect for lobbies, offices, and hospitality environments, this fixture transforms ceilings into design features, offering customizable lumen output, finishes, and mounting styles for various application, single ring shaped frosted PMMA lens; soft direct illumination for general illumination and maximum visual comfort; SAMSUNG LED with above 90CRI; available in 2700K, 3000K, 3500K, 4000K, RGBW and Tunable White; 85% of luminous flux after 50000-hours; ETL damp location listed; universal power supply with 0-10v dimming capability.
Specification Sheet

Resources

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K

CRI

  • 90 CRI

Color / Finish

  • Black
  • Custom
  • Silver
  • White

Diameter

  • 24 In.
  • 36 In.
  • 48 In.
  • 60 In.
  • 96 In.
  • 120 In.
  • 168 In.
  • 194 In.

Dimensions

  • H: 3.94 In. W: 3.1 In.

Dimming Protocol

  • 0-10 V

Distribution

  • Direct

Dynamic LED Color

  • RGBW
  • Tunable White

Lumens

  • Lm
  • 3400 Lm
  • 4250 Lm
  • 6800 Lm
  • 8500 Lm
  • 10200 Lm
  • 13600 Lm
  • 17000 Lm
  • 25500 Lm
  • 34000 Lm

Ratings & Compliance

  • Buy American Act (BAA)
  • Damp

Voltage

  • 120-277 V

Watts

  • 40 w
  • 50 w
  • 80 w
  • 100 w
  • 120 w
  • 160 w
  • 200 w
  • 300 w
  • 400 w
