Revolve 84
RV-84 PNG. Inner Emission.pngRevolve 84

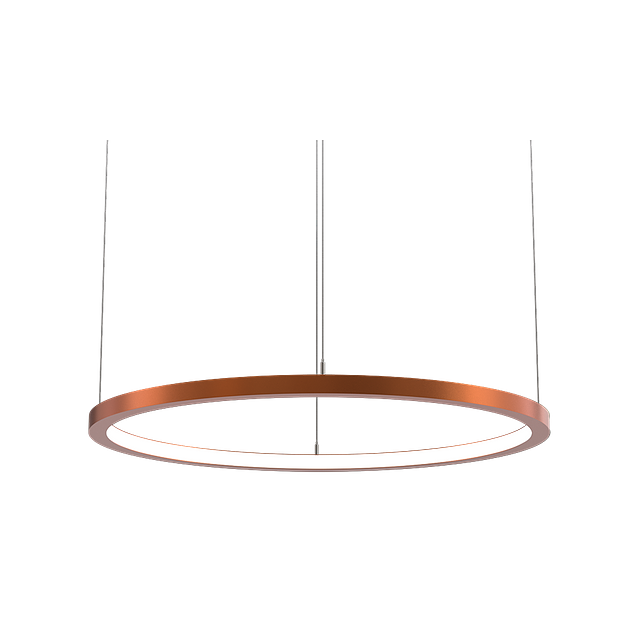

Architectural Ring Luminaire
This versatile luminaire features a seamless aluminum housing, available in multiple finishes and with steel cable suspension or direct ceiling mount options. It provides homogenous illumination through a frosted PMMA lens, with inner or outer facing emission, and uses SAMSUNG LEDs for high color rendering. ETL listed for damp locations, with field-selectable CCT options and dimming capabilities for flexible lighting control.
Resources
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 90 CRI
Color / Finish
- Black
- Custom
- Silver
- White
Diameter
- 24 In.
- 36 In.
- 48 In.
- 60 In.
- 98 In.
Dimensions
- H: 1.3 In. W: 1.4 In.
Dimming Protocol
- 0-10 V
- ELV
Distribution
- Direct
- Direct/Indirect
Dynamic LED Color
- RGB
- Tunable White
Lamp Life
- 50000 hrs
Lumens
- 2348 Lm
- 2935 Lm
- 4250 Lm
- 5100 Lm
- 5136 Lm
- 5870 Lm
- 6800 Lm
- 7000 Lm
- 8400 Lm
- 8500 Lm
- 10200 Lm
- 11200 Lm
- 13600 Lm
- 17000 Lm
Mounting
- Suspended
Ratings & Compliance
- Damp
Shape
- Ring
- Round
Voltage
- 120-277 V
Watts
- 32 w
- 40 w
- 50 w
- 60 w
- 70 w
- 80 w
- 100 w
- 120 w
- 160 w
- 200 w
