Lumi-Plane

Direct/Indirect Luminaire

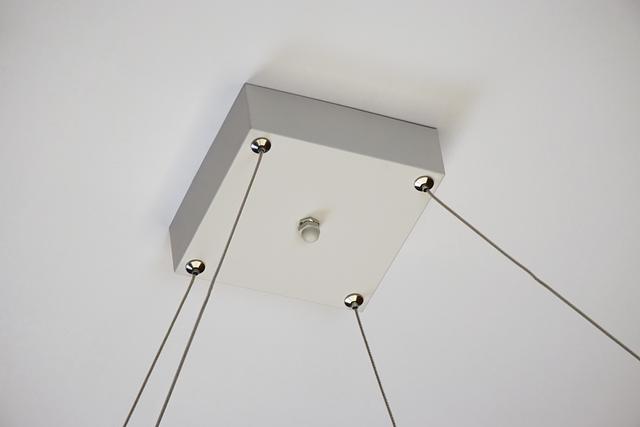

LUMI-PLANE - featuring a slim design with clean lines and square forms. Its unique semi-transparent optics provide optimal direct/indirect distribution of 55% downlighting and 45% uplighting, creating the illusion of light floating in mid-air; power over suspension cable system, eliminates the use of power cord; 80CRI; field selectable output 3000 / 4000 / 5000lm setting; field selectable CCT 3000K ~ 4000K; 88% of luminous flux after 50,000 hours; cULus damp location listed; universal power supply with 1% 0-10v dimming.
Specification Sheet

Resources

Specsheets


Photometry


CCT

  • Field Selectable CCT
  • 3000K
  • 3500K
  • 4000K

CRI

  • 80 CRI

Color / Finish

  • Black
  • White

Dimensions

  • H: 0.83 In. L: 24 In. W: 24 In.

Dimming Protocol

  • 0-10 V

Dimming Range

  • 1%

Distribution

  • Direct/Indirect

Efficacy

  • 100 lm/w

Emergency Options

  • Remote EM Battery

Lamp Life

  • 50000 hrs

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 3000 Lm
  • 4000 Lm
  • 5000 Lm

Materials

  • Aluminum
  • PMMA

Mounting

  • Ceiling

Ratings & Compliance

  • Assembled in America
  • Buy American Act (BAA)
  • Damp

Shape

  • Square

Voltage

  • 120-347 V

Warranty

  • 5 yr

Watts

  • 30 w
  • 40 w
  • 50 w
