LUX 3.8 Perimeter Regressed
New Product
Architectural Perimeter Luminaire

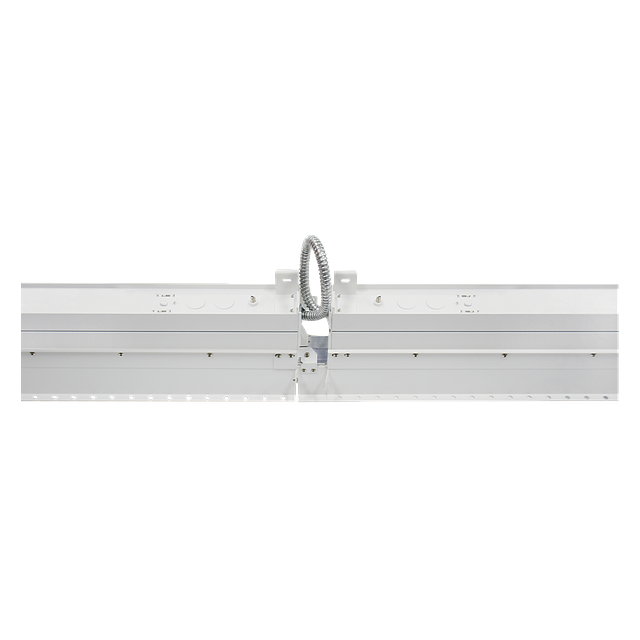

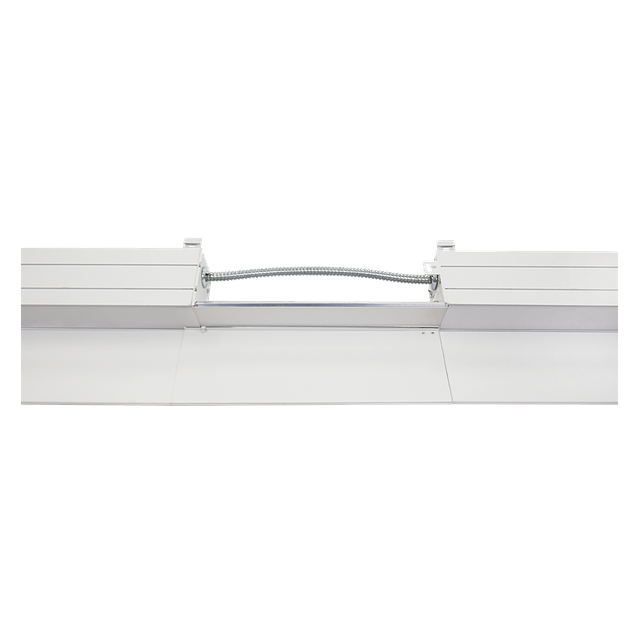

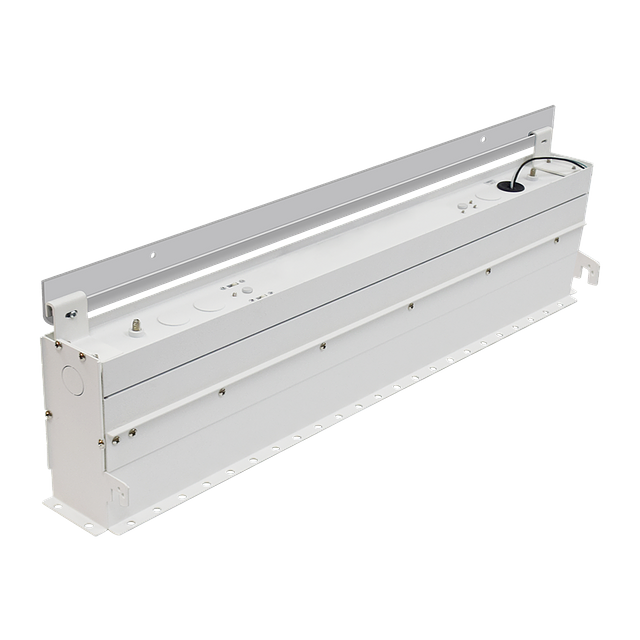

The LX3.8P Regressed architectural perimeter luminaire features a 3.8" wide profile, available in 2, 3, and 4-ft lengths. 90° illuminated corner connectors available for custom continuous-runs. Features an integral 120–277V driver with 0-10V dimming, frosted polycarbonate lens, and direct light distribution. LED source provides field-selectable wattage and CCT options. cULus listed for damp location.
Resources
CCT
- 3000K
- 3500K
- 4000K
CRI
- 80
Dimming Protocol
- 0-10 V
Emergency Options
- Emergency Battery Backup
Lamp Source
- LED
Listings
- cULus
Lumens
- 1100
- 1650
- 2200
- 2530
- 3300
- 4400
Mounting
- Perimeter
Ratings & Compliance
- Damp
Voltage
- 120-277 V
Watts
- 10
- 15
- 20
- 23
- 30
- 40
